Geomembrane Production Machinery, The Weapon Of Geosynthetics Manufacturers.
Extrusion blow-molded geomembrane machinery sets, using HDPE, LDPE, and LLDPE as raw materials. Geomembrane products’ quality: US GM13 standard. Geomembrane products’ width is 6–10 meters and thickness range is 0.3–2.5 mm.
Recently in China, for every ten complete sets of blow-molded geomembrane production machinery, four are manufactured and sold by the equipment manufacturing factory that we cooperate with.
Provide complete production solutions tailored to customer demands, significantly reducing the overall purchase cost of equipment and the products production cost to enhance the competitiveness of products.
Our extensive industry experience in blow-molded extrusion mechanical manufacturing and process commissioning since the 1990s enables us to provide customers with one-stop turnkey solutions, nanny-level services.
Equipment Catalogue

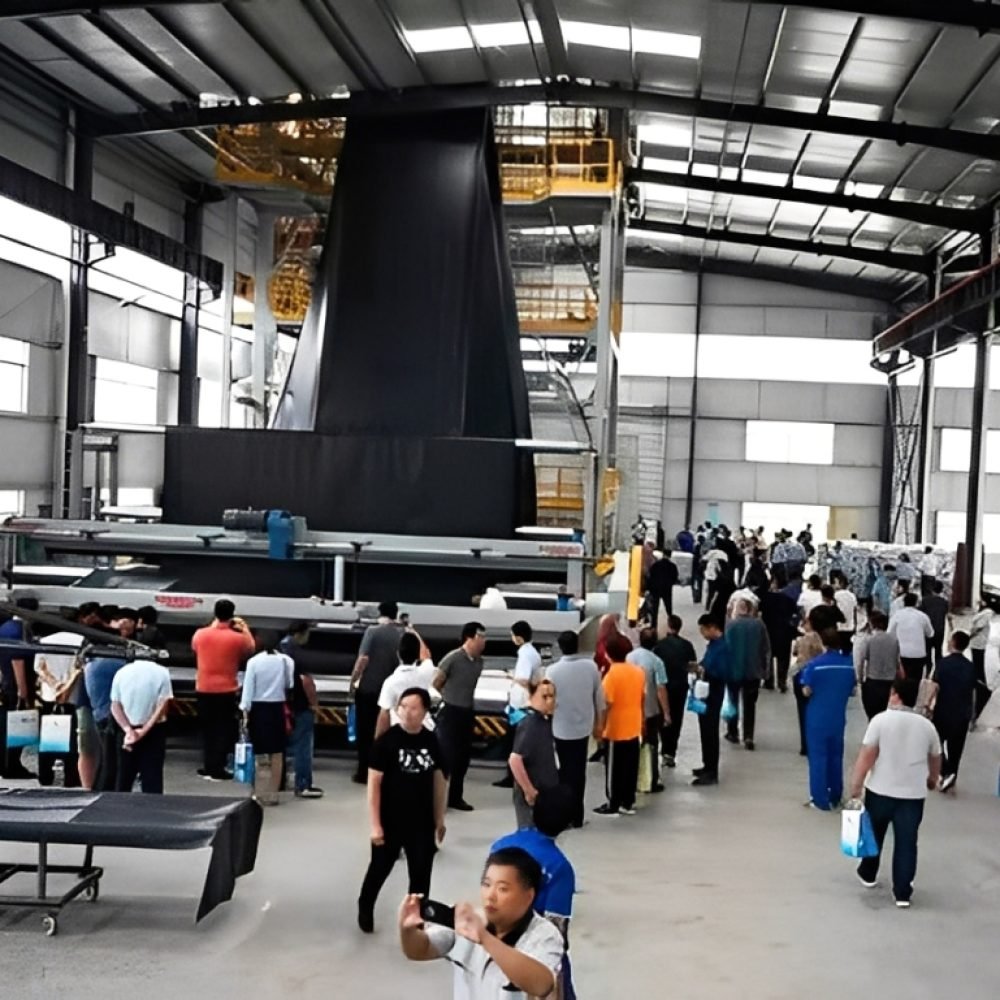

Blow-Molded Geomembrane Production Machinery Sets
Our blow-molded geomembrane production machinery offers multiple advantages such as lower overall investment in equipment, faster construction period, reduced production costs of products, balanced bidirectional mechanical properties, and a wide range of adjustable product widths. This makes it an excellent choice for manufacturers of geomembrane.
2/3 layer geomembrane extrusion blowing machine, utilising 2 or 3 extruder units, are capable of producing HDPE geomembrane waterproof sheet with widths of 6-10 meter and thickness range of 0.5-2.0mm.
4/5 layer geomembrane extrusion blowing machine, equipped with 4 or 5 of extruder units, major difference with 3 layer machine is that the machine can produce textured geomembrane with smooth edge.
Our company can provide clients with specific equipment configuration plans and customize the production of geomembrane machinery based on their requirements for geomembrane product specifications.
A Whole Die Head System
Die Head is The 'Heart' of The Machine
Cooling Air Ring System
Heating and temperature control system
Core Component Parts
Die head system of the machine will determine the final products quality.
Its process is as follows: molted resin from the extruder – extruded from the die head mold to form a film tube – blowing compressed air to inflate it – cooled and shaped by the cooling air ring.To complete this process, the die head must maintain the high temperature of the molten resin, so die head also requires a heating system and a temperature control system.
Our Values
Manufacturing excellent machinery equipment for product manufacturers.
Sharp tools make good work. Excellent geomembrane machinery makes good geomembrane products.
Make our extrusion blow-molded machinery become the mainstream equipment for manufacturing geomembrane products.
Our Geomembrane machinery story through data
Three sets of data briefly summarize the development history of our company as a major manufacturer of plastic extrusion blow-molded film machinery and equipment in China.
Machinery Overview and Process Flow
Production Process and Equipment Configuration
Basic production process flow of extrusion blow-molded geomembrane machinery is shown in the right figure
Equipped 2-5 sets of large length-to-diameter ratio single-screw extruders with automatic blender and feeding systems.
Molten resin is extruded through a high-precision die head and blown molding into a film tube , which is then cooled to ambient temperature by a cooling wind ring.
Cooled film is flattened and folded by a chevron frame, pulled out by the top nip rollers and it is unfolded into a single-layer film. After multiple guide rollers, it is wound by the coiler to form a membrane roll.
- New type of wavy screw extruder unit with mixing section and equipped with conveying liner sleeve.
- Die head components undergo FEA and structural optimization for internal flow channel design, followed by precision machining, grinding, and polishing on six-axis CNC machines. This makes the die head system, as a core component, ensures the quality of the final geomembrane products.
- Cooling system adopts fans with low wind pressure and high air volume. Stable and reliable traction and coiler devices system.
Mechanical Structure and Components
Electrical Automatic Control System
- The entire machine's automatic electrical control system employs precise and reliable electrical components from globally renowned brands.
- Both the extruder unit and die head components are equipped with high-efficiency electric heaters and automatic temperature control systems.
- The entire unit employs AC variable frequency drive technology for motor speed control, delivering both energy efficiency and reliability.
Production Process Commissioning and Support Service
- If the production equipment is hardware, then material formulations and production process are the important software parts.
- Our specialist knowledge in the blow-molded geomembrane will assist customers in improving and enhancing themselves in multiple aspects, including selecting suitable raw materials, adjusting appropriate production process parameters, and adopting safe and correct production operating procedures.
- Our after-sales service provides clients with comprehensive technical support, including production commissioning and routine producing.
Main Technical Index of 3 & 4 Layer Co-extruded Blow-molded Geomembrane Machine Sets
Why choose us
Understand why our machinery is your cornerstone to success.
Our plastic machinery company has been dedicated to the R&D, design and manufacture of various plastic extrusion blown film machinery units for nearly three decades.
Especially for geomembrane production line, our extensive client resources and industry experience in the domestic market enables us to achieve shorter manufacturing cycle, faster commissioning, and lower energy consumption per unit.
We provide you with optimally ongoing support across all aspects, laying a solid foundation for your geomembrane products to win the market.
From the initial narrow film to today's ultra-thick wide geomembrane, the continuous iteration of the production line reflects our splendid R&D and design capabilities in mechanical equipment.
We possess advanced multi-type CNC machining equipment and skilled technicians, coupled with a mature and complete supply chain, enabling us to manufacture high-quality mechanical equipment.
Company employs a full-time professional team of over 50 engineers and technician responsible for mechanical and electrical design, installation and manufacturing as well as process commissioning.
Throughout the entire process of pre-sales, manufacturing, installation, commissioning, as well as acceptance and delivery, our technical engineers will be involved in discussions and support.
Promise to supply original spare parts for equipment at the most favorable prices and guarantee quality, or provide clients with spare parts solutions within the local area.
Responsible for warranty services during the warranty period. Offer 7x24-hour technical consultation services to deal with any questions at any time.
